Test setup
by afgalaz 2026-02-27 18:00

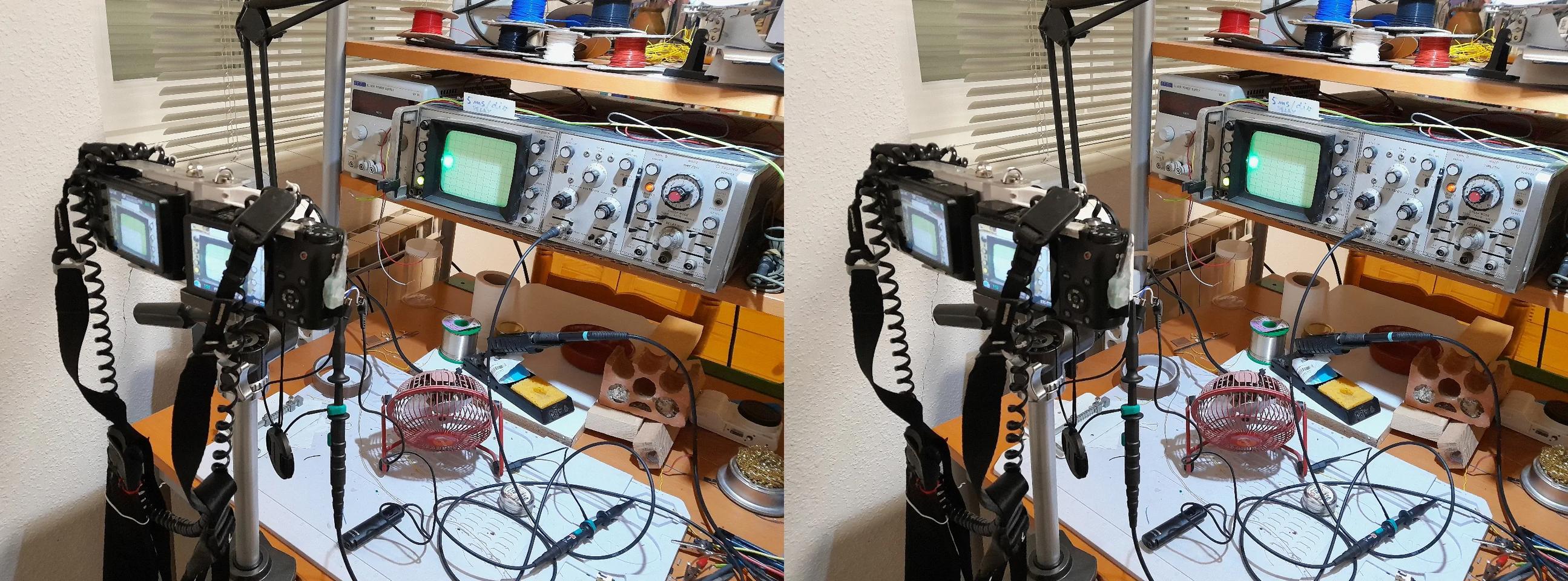

This shows the lower channel of the scope connected to the remote release switch.
This is a bit outdated respect the test images shown in this album. Actually:
- The remote release is connected to the external trigger port
- The photo cell testing the flash light pulse is connected to the lower channel
- Nothing is connected to the upper scope channel, but it runs anyway to show the synch error in the upper part of the image
